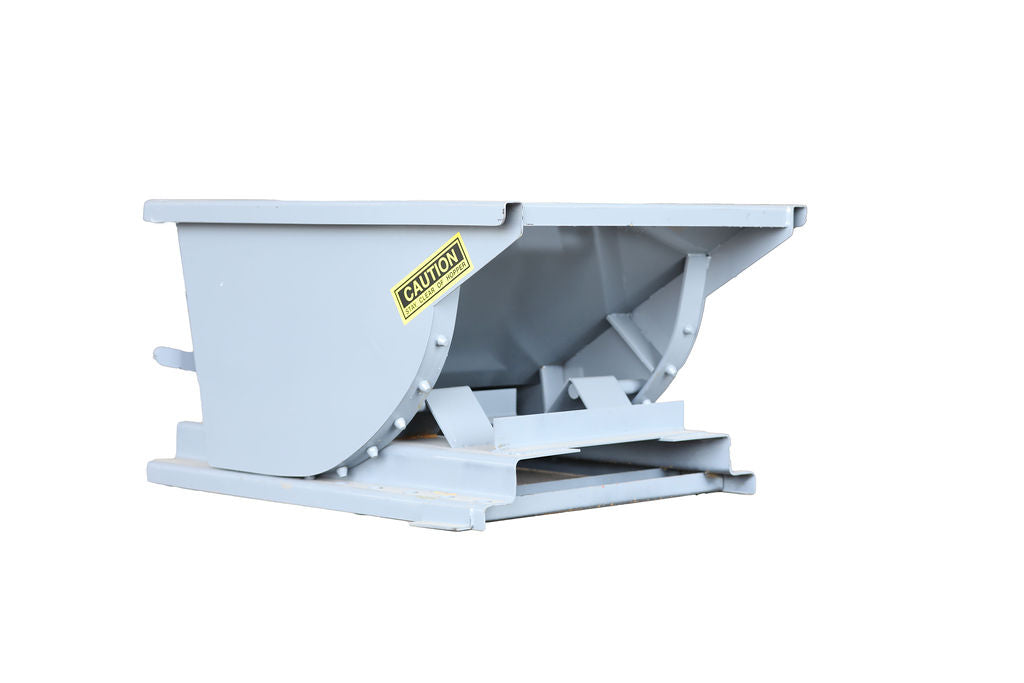

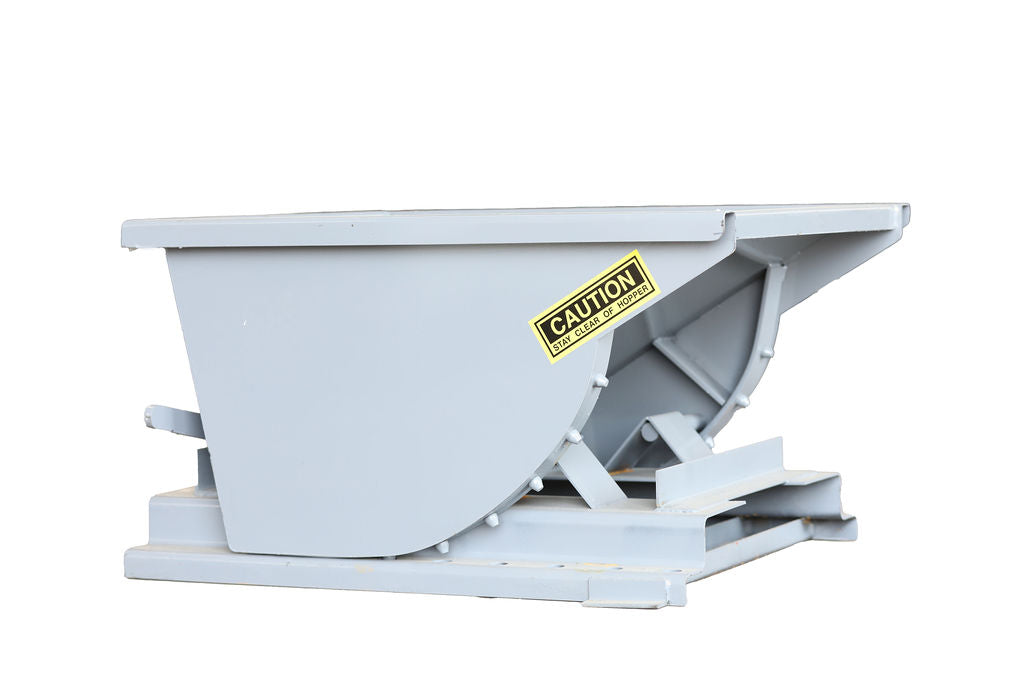

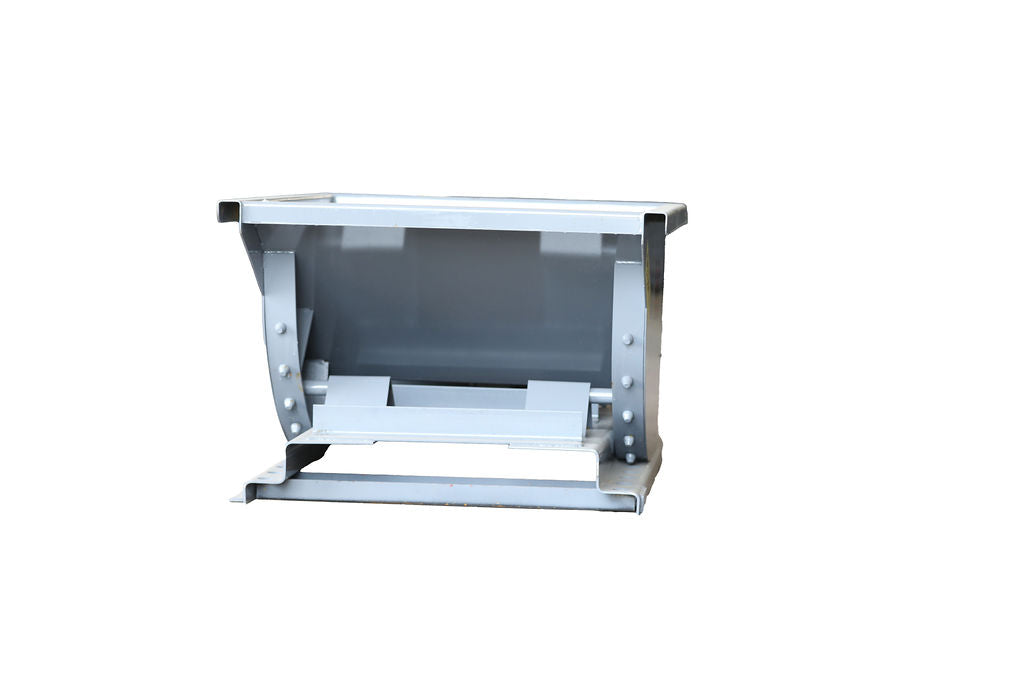

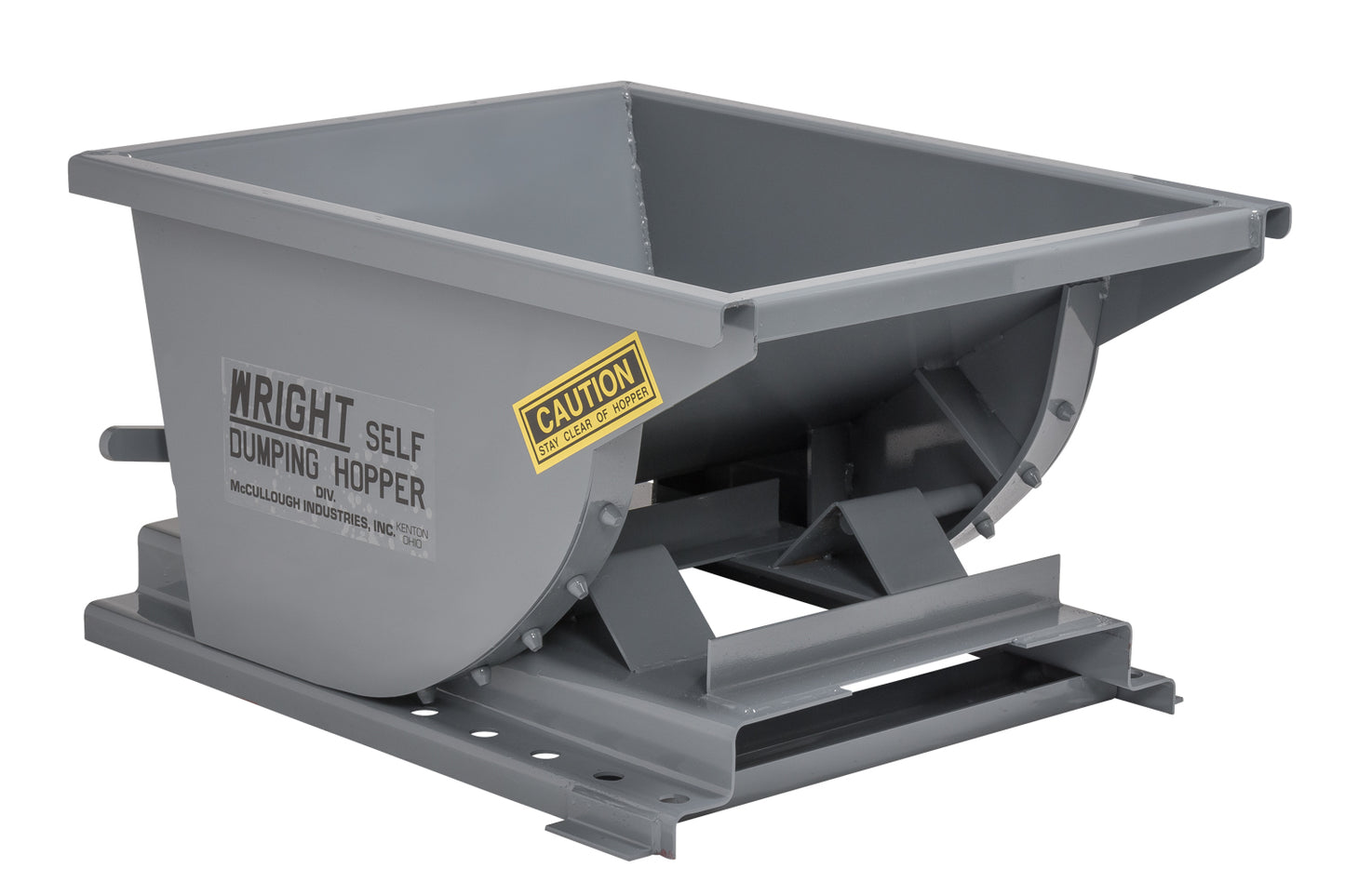

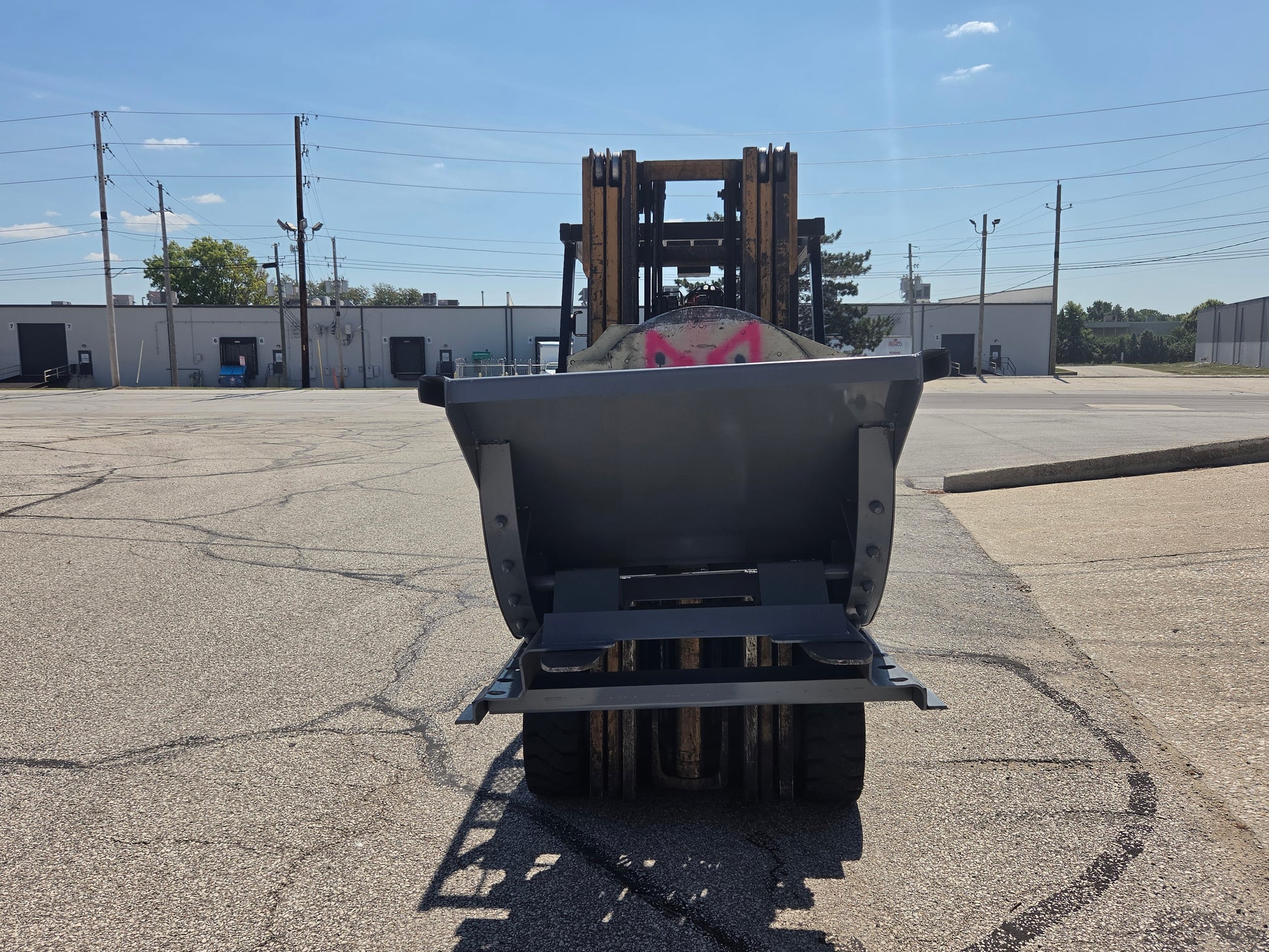

Features of Our 1/4-Yard Dumping Hoppers
Standard (10G Side, 7G Bottom- 4000lb Capacity)
Heavy Duty (7G Side, 1/4G Bottom- 7000lb Capacity)
Volume Capacity | 0.25 yd³ |
Overall Width A | 33.75 in |
Overall Height B | 22.25 in |
Overall Length C | 44.75 in |
Fork Opening D | 3 by 22 1/2 in |
Container Length F | 41 3/4 in |
Dump Clearance Height G | 40 in |
Dump Clearance Bottom H | 2 1/2 in |
Dump Clearance Length I | 49 3/4 in |
Front Clearance J | 4 3/4 in |
Base Width K | 30 1/2 in |
Base Length L | 40 in |

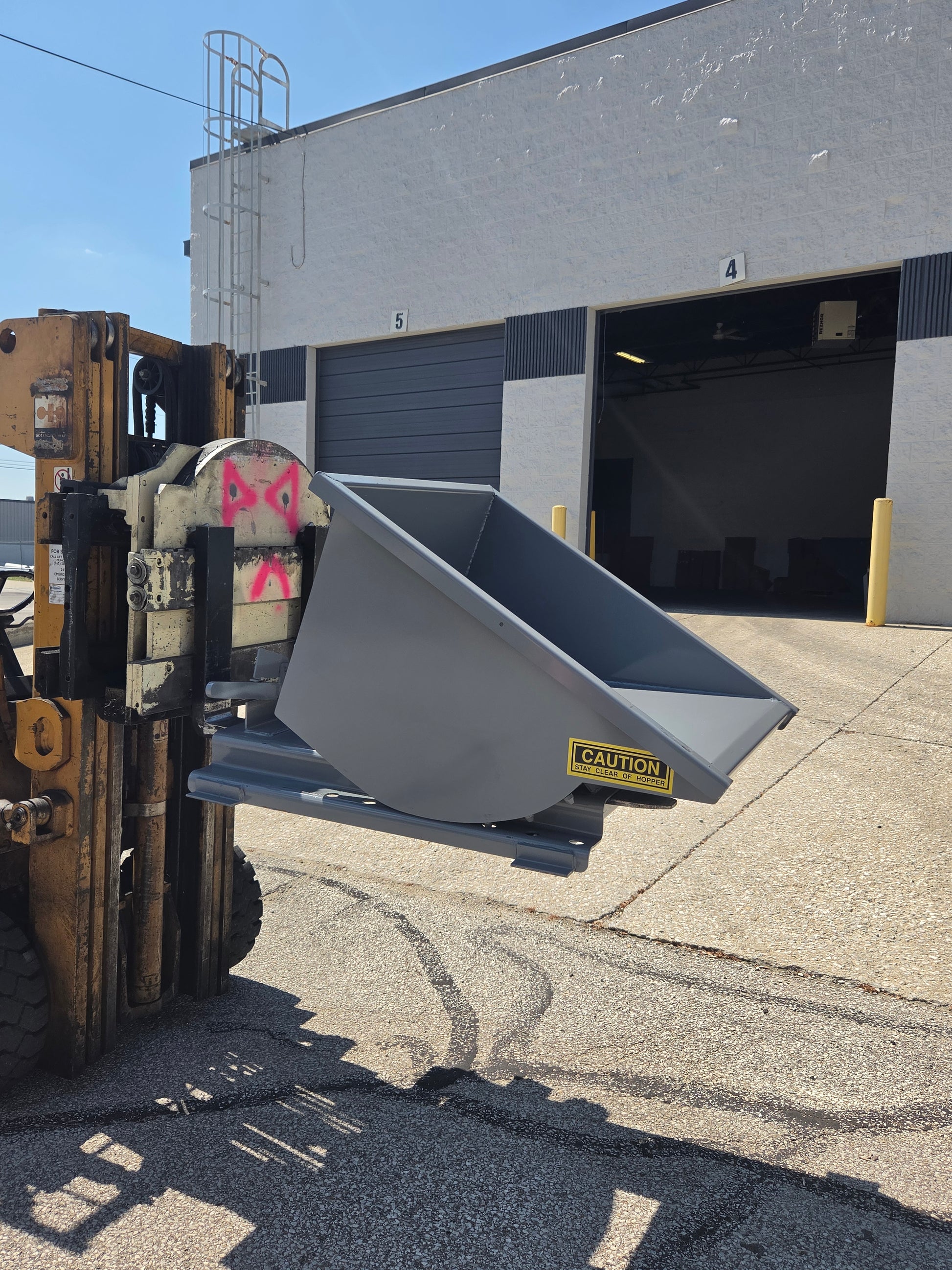

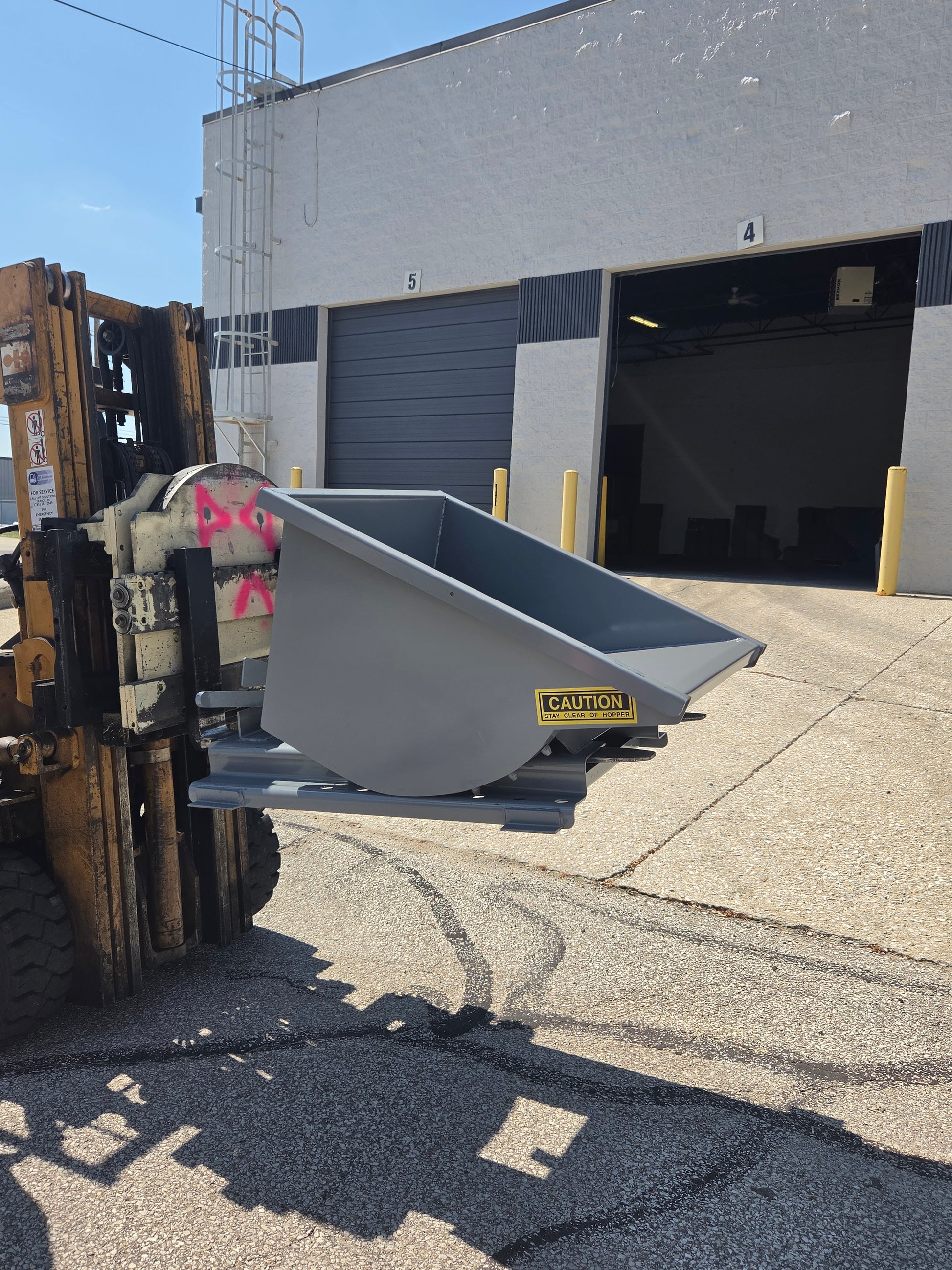

Dump Angle M | 40 º |
Center Of Gravity N | 19 3/4 in |
Weight Capacity | 4000 lb |
Approximate Weight | 268 lb |
Pouring Lip E | 0 in |
