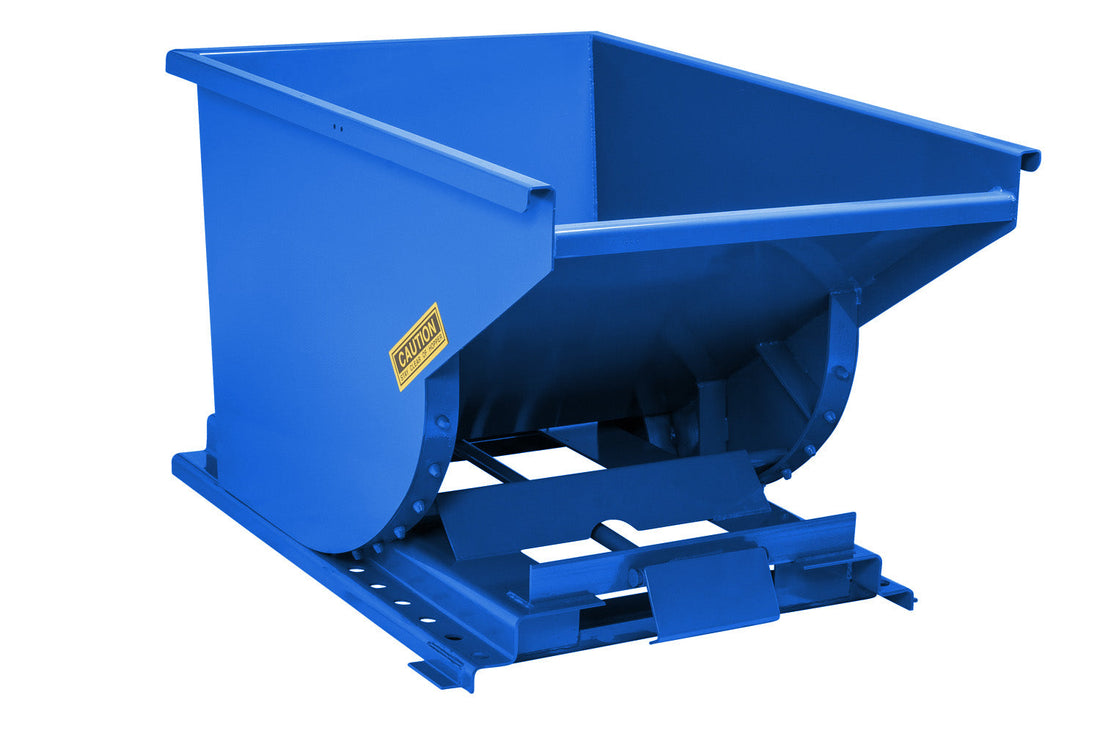

self-dumping hopper specs

Self-Dumping Hopper Specs: What Do They All Mean?

Merritt Day

Looking at a self-dumping hopper spec sheet can be overwhelming. It’s packed with data, but most buyers tend to only focus on volume and weight capacity. And while these fields are important, they only tell a small piece of the story. By ignoring the rest of the sheet, you risk skipping the most important question: Is your current forklift actually capable of lifting your load?

The Spec Sheet

The following table includes a detailed breakdown describing each of the spec fields on a product page and what each is used for.

Field Name What It Measures What It Lets You Decide
Volume Capacity The maximum amount of bulk material the hopper is designed to hold at one time Whether the hopper can handle the volume of material you need to move between dumps
Overall Width A The hopper’s total width at its widest point Whether the hopper will fit between equipment, aisles, or doorways, or within its designated storage area
Overall Height B Total height of the hopper when upright Whether it will fit beneath loading shelving, equipment, or other overhead restrictions
Overall Length C The hopper’s total front-to-back length when upright Whether you have enough floor and maneuverability space for the hopper and forklift
Fork Opening D The dimensions of the openings where forklift forks enter the base Whether your lift truck’s forks can enter and support the hopper properly
Container Length F The front-to-back length of the material-holding container How much of the overall hopper’s length is taken by the container itself
Dump Clearance Height G The vertical clearance of the hopper when it’s in its dumping position Whether the hopper can properly position over the receiving container during dumping
Dump Clearance Bottom H The clearance under the front of the hopper during dumping Whether the hopper can tip without its lower section affecting the receiving container
Dump Clearance Length I The horizontal space the hopper holds in its dumping position Whether there is enough room to complete the dumping process without hitting nearby structures
Front Clearance J The space at the front of the hopper relative to its base during dumping How the hopper can be positioned to not hit the receiving container or other structures
Base Width K The width of the supporting base of the hopper How much floor or operating space the base of the hopper requires
Base Length L The front-to-back length of the supporting base How much space the hopper requires at floor level
Dump Angle M How far forward the hopper rotates during dumping Whether the hopper provides enough tilt for the holding material to empty effectively
Center of Gravity N The location of the hopper’s balance point relative to the forklift How the hopper and its load affect lift truck stability and handling
Weight Capacity The maximum material weight the hopper is rated to carry Whether the hopper can safely handle your material, not just its volume
Approximate Weight The empty weight of the hopper itself How much total weight your forklift must handle before the material load is added
Pouring Lip E How far the hopper’s dumping lip extends at the front How the hopper will dump material over or into the receiving dumper

It is important to understand what each of these spec field measurements mean and why they are listed as a measurement on each product page. However, three of these deserve more attention than the rest.

Gauges

There are two things that almost every buyer gets wrong about gauges. First, a lower number means thicker steel. Second, gauge is not a load rating – it tells you how the rating was achieved, not what the hopper can carry.

The lower the gauge number the thicker the steel, which is counterintuitive to what most people would assume. Use the following table to understand the thickness of sheet steel:

Gauge Thickness
7 gauge 0.1793 in
10 gauge 0.1345 in
11 gauge 0.1196 in
12 gauge 0.1046 in
14 gauge 0.0747 in

Notice how moving from 10 gauge to 7 gauge results in about 33% more steel. A quarter-inch plate, which is what heavier bases are usually made of, is about 39% thicker than the 7 gauge.

The same gauge number does not correlate to the same thickness in different metals. For example, 10-gauge steel is 0.1345 inches, but 10-gauge aluminum is 0.1019 inches. This reinforces the buyers’ need to use gauge to understand how the rating was achieved and always compare multiple models from the same maker.

Forklift Ratings

There are two ratings that come into play, and have to agree, to make the purchase work: the hopper’s weight and the forklift’s capacity rating. The hopper’s own weight counts because an empty two-yard hopper can weigh 580 pounds before anything goes into it. And that is going to come out of the forklift’s budget, not the hopper’s.

On the other hand, a forklift’s capacity is only correct at a stated distance. A forklift capacity plate says it can lift 5,000 pounds at a 24-inch load center.

Note: Load center is the distance from the face of the forks out to the middle of the load’s weight.

A loaded hopper’s weight sits further out than a standard pallet, which the spec sheets publish as the center of gravity.

Check your forklift’s data plate, and, if the two numbers look close, call before ordering.

Height, Clearance, and Fit

Overall height is the number buyers usually plan with, but the problem with this is it doesn’t tell you whether a hopper has enough room to actually dump.

Overall Fit Dumping Fit
Overall height tells you whether the hopper fits under equipment or structure restrictions. Dump clearance height and length tell you how much vertical and forward space it needs while dumping.
A standard 1-yard hopper is 39.75” high. The same hopper requires 60.75” of dump clearance height and 78.75” of dump clearance length.

Choosing the right hopper means finding the capacity you need in a way that your forklift and space can actually accommodate.
